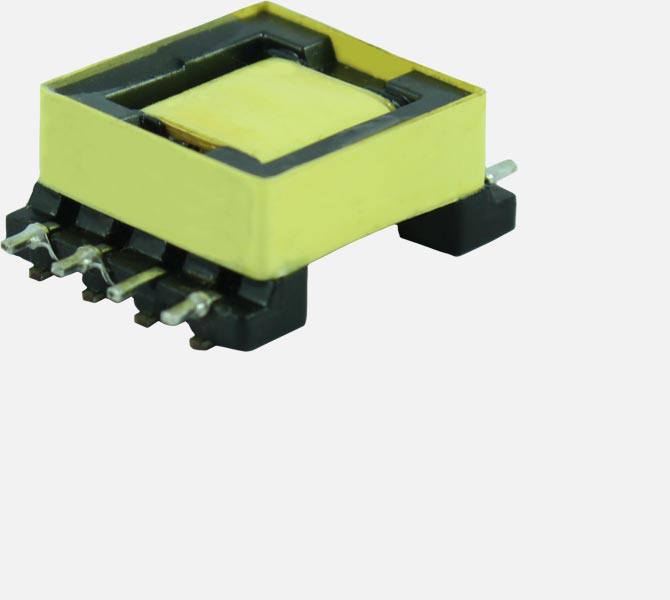

In this section, we have listed core and bobbin geometries that are most commonly used to build switching transformers. Do reach out to us if you need a specific size that isn't listed here. You may use the data provided to finalize the transformer design and request a quote and samples. Footprint data provided is subject to change so check with us before you finalize your PCB layout on this basis.
| Winding Width | 7.5mm |
| Winding Height | 1.5mm |
| Core Ae | 28.5sq.mm |
| Core Le | 11.4mm |
