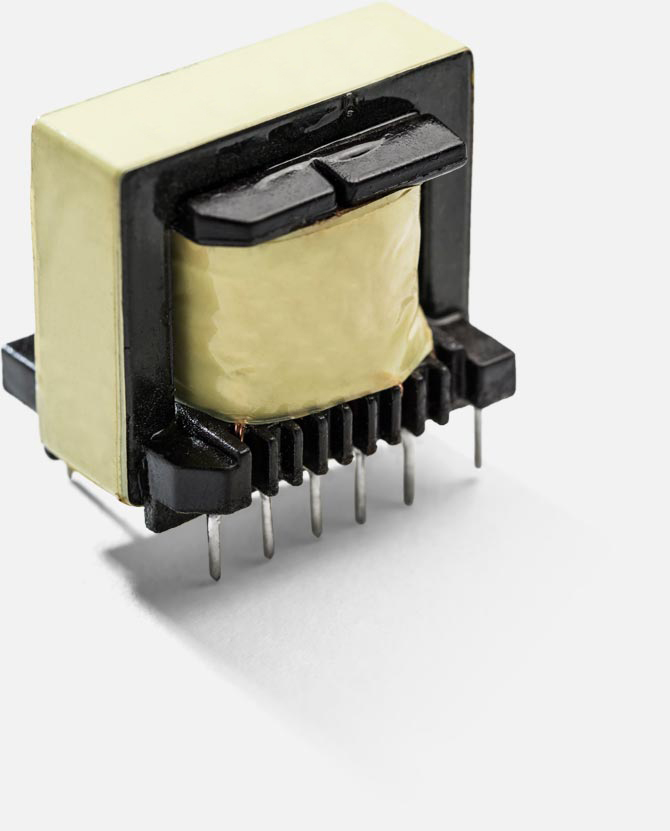

In this section, we have listed core and bobbin geometries that are most commonly used to build switching transformers. Do reach out to us if you need a specific size that isn't listed here. You may use the data provided to finalize the transformer design and request a quote and samples. Footprint data provided is subject to change so check with us before you finalize your PCB layout on this basis.
| Winding Width | 16mm |
| Winding Height | 7.0mm |
| Core Ae | 120sq.mm |
| Core Le | 67.3mm |
