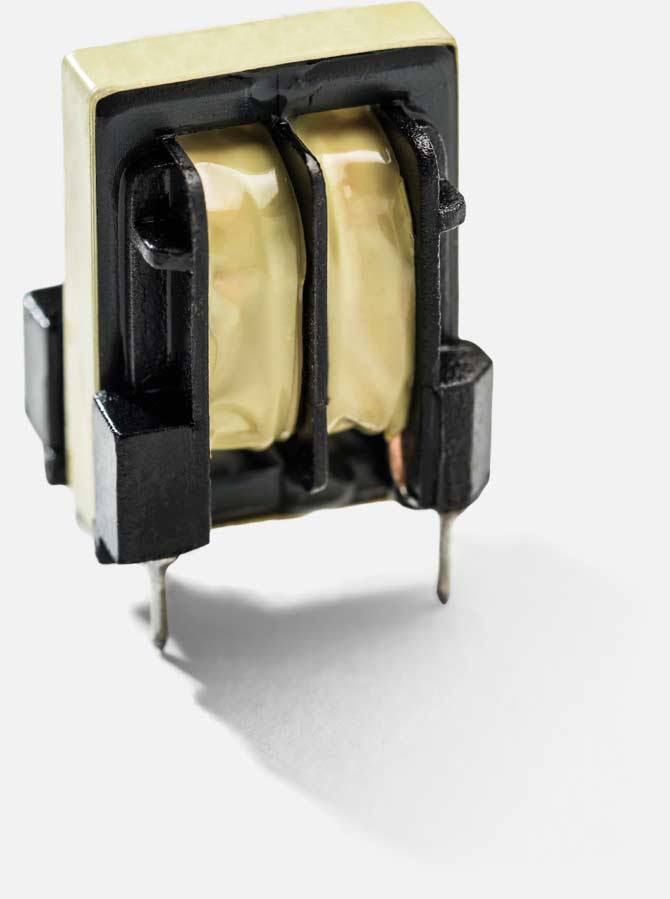

| PART # | ORDER CODE | INDUCTANCE (mH) (MIN) |
CURRENT RATING (mA) (STEADY STATE) |
LEAK INDUCTANCE (µH) (TYPICAL) |
DC RESISTANCE (Ω) (MAX) |
|---|---|---|---|---|---|
| 073701 | P20052 | 0.57 | 4.00 | 9 | 0.025 |
| 081701 | P20054 | 1.00 | 3.00 | 15 | 0.050 |
| 072101 | P20056 | 2.20 | 2.50 | 30 | 0.095 |
| 090101 | P20058 | 4.70 | 1.75 | 55 | 0.160 |
| 065101 | P20060 | 8.20 | 1.50 | 125 | 0.250 |
| 080201 | P20061 | 10.00 | 1.20 | 125 | 0.340 |
| 090201 | P20063 | 15.00 | 1.00 | 175 | 0.450 |
| 067901 | P20065 | 22.00 | 0.75 | 265 | 0.765 |
| 072701 | P20067 | 33.00 | 0.55 | 400 | 1.450 |
| 090301 | P20069 | 47.00 | 0.45 | 520 | 1.900 |
| Isolation | At 50Hz / 4mA / 1 min |
| Between windings | 1500V AC |
| Windings to core | 1500V AC |
| Insulation Resistance | At 500V DC Greater than 100MΩ |
