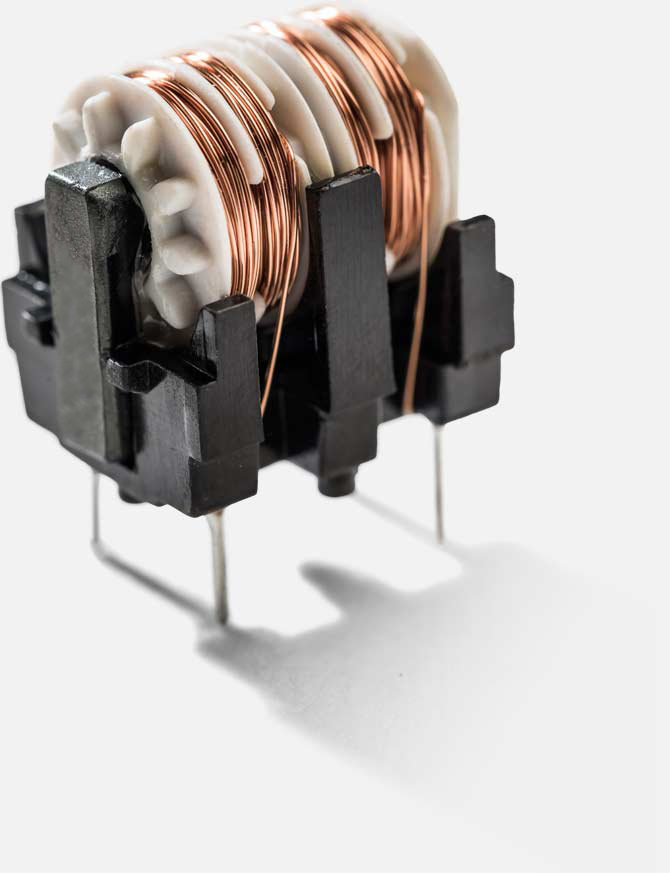

| PART # | INDUCTANCE (mH) (MIN) |
CURRENT RATING (mA) (STEADY STATE) |
LEAK INDUCTANCE (µH) (TYPICAL) |
DC RESISTANCE (Ω) (MAX) |
|---|---|---|---|---|
| 086001 | 0.75 | 1.50 | 20 | 0.120 |
| 086101 | 1.20 | 1.25 | 23 | 0.130 |
| 086201 | 1.80 | 1.00 | 32 | 0.185 |
| 086301 | 3.90 | 0.75 | 71 | 0.325 |
| 086701 | 5.60 | 0.50 | 105 | 0.500 |
| 086401 | 12.00 | 0.50 | 215 | 0.915 |
| 125801 | 14.00 | 0.40 | 275 | 1.000 |
| 086801 | 15.00 | 0.30 | 300 | 1.350 |
| 086901 | 22.00 | 0.25 | 430 | 1.950 |
| 086501 | 33.00 | 0.25 | 605 | 2.800 |
| 086601 | 47.00 | 0.20 | 930 | 3.900 |
| Isolation | At 50Hz / 4mA / 1 min |
| Between windings | 1500V AC |
| Windings to core | 1500V AC |
| Insulation Resistance | At 500V DC Greater than 100MΩ |
